SINGLE PHASE MONOBLOCK PUMPS

• Power Output: 1 Horsepower (HP) / 0.75 Kilowatts (kW).
• Operating Voltage: Usually single-phase AC, built with wide voltage design to handle 180 V to 260 V fluctuations.
• Motor Speed: Standard high-speed operation ranging from 2700 to 2900 RPM.
• Material: Features a high-grade extruded aluminum or cast-iron motor body with a pure copper winding and rust-resistant brass impeller.
• Safety: Most models are equipped with an in-built Thermal Overload Protector (TOP) to prevent the winding from burning out due to sudden voltage spikes or overheating

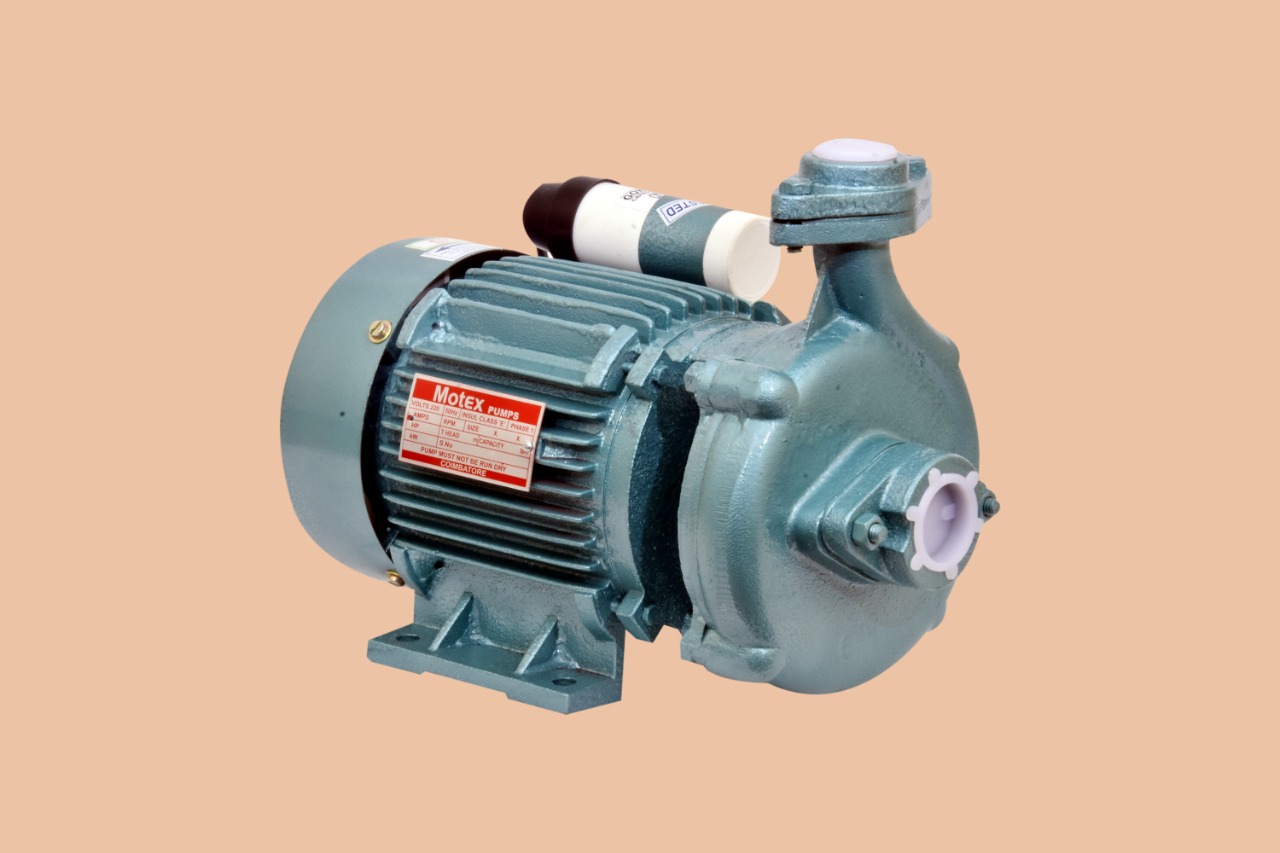

A 1 HP monoblock water pump motor is a compact, high-efficiency, single-shaft device where the motor and pump casing are housed together, primarily used for lifting water in domestic households, overhead tanks, gardens, and small farms. These single-phase surface pumps operate efficiently on standard AC electricity and can typically lift water up to 30–35 meters vertically while pulling water from a suction depth of up to 25 feet
